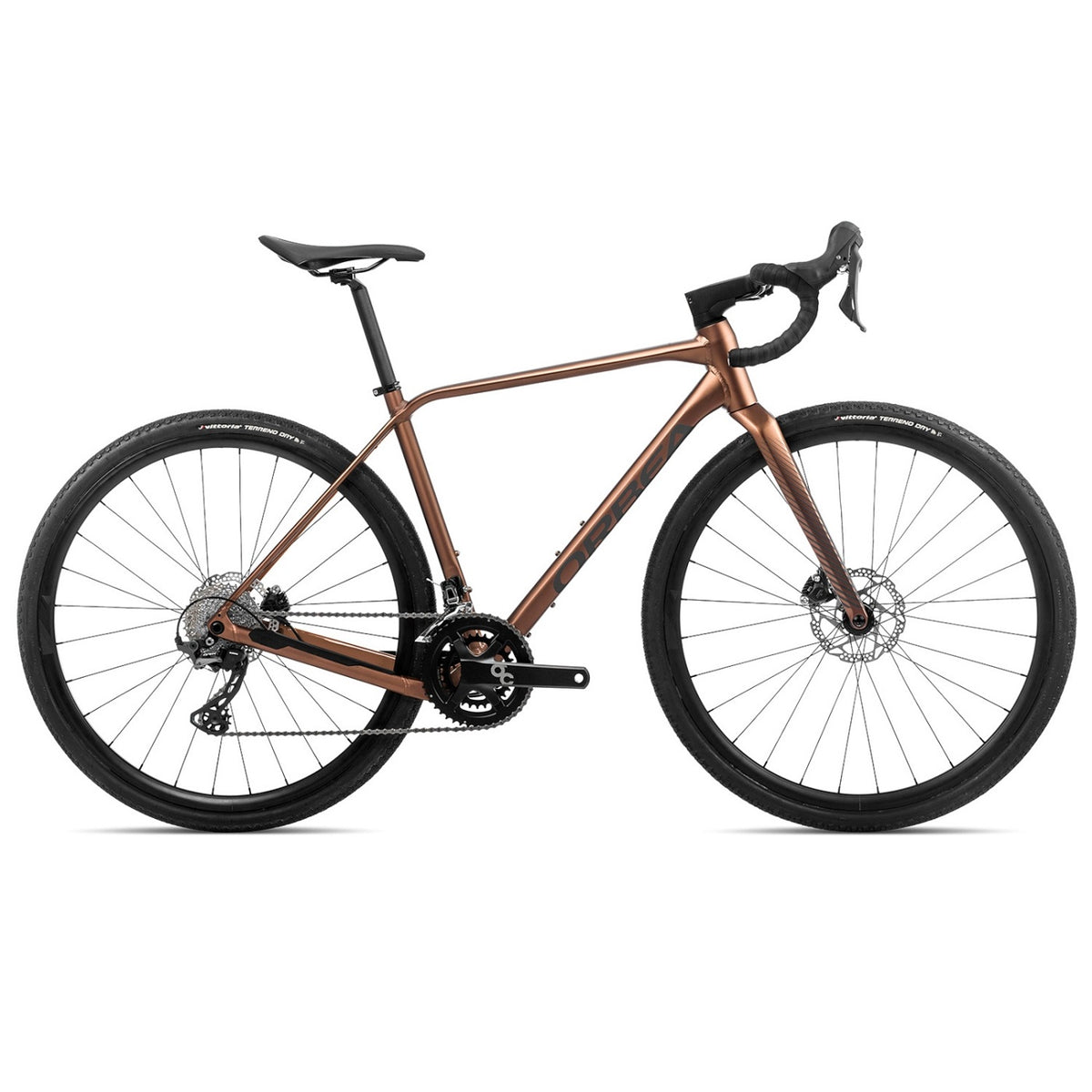

Orbea TERRA H30 Cooper Matt

GRAVEL FROM THE GROUND UP

Discover the world, adventures with an overnight under open skies, rough back roads in the hinterland and fantastic gravel routes, Gravel can be many things. One thing is certain, though: a gravel bike combined with safe handling has to deliver solid speed and good comfort. Above all, though, it’s a lot of fun! It darts into every gap between paved roads and narrow singletracks, filling them with variety and adventure. Designed from the first moment for use on gravel, the Terra is anything but a repurposed road bike or a sleek mountain bike. The Terra IS Gravel. It brings more comfort to your adventures on the road and finally lets you discover where this gravel path leads at the end of the paved road. Or how about an adventure through the night? Out there, the big wide world is waiting for you. And the Terra is ready to discover it with you.

A MORE VERSATILE BIKE

The world of gravel biking is big. It’s not just about fast riding on different surfaces, but also about completely different intended uses. That’s why the Terra includes a complete family with different models in aluminium and carbon. That way, everyone finds the right Terra.

PARTNER FOR ENDLESS ADVENTURES

The aluminium version is the most versatile member of our Terra family. The perfect bike for endless adventures and exciting overnighters.

Modern hydroforming technology and optimised tube dimensions provide an aluminium frame with plenty of comfort for really long rides. At the same time, the mounting points at the rear allow you to use panniers. If you feel like you absolutely have to break out again and get away, the Terra H is ready for that.

TYRE FREEDOM

For fast tours and efficient propulsion on gravel roads, the Terra can be set up with 700c x 45 tyres. And if you want more comfort, puncture protection and grip, go for 650b x 50.

COMPATIBLE DRIVETRAINS

Because we developed the frame from scratch, we were also able to tackle a problem common to many gravel bikes: the limitations in terms of tyre clearance when choosing different crank options.

Specification:
Number of gears: 2x11
Wheel size: 700c, 28 inches
Frame: Orbea Terra Hydro disc, hydroformed triple butted aluminium, HS 1,5", PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1, DT internal cable routing, 27,2mm seat tube, MMS system
Fork: Orbea Terra OMR carbon disc fork, full carbon steerer
Crank: Alloy forged 30x46t
Headset: FSA 1-1/2" Integrated Aluminium Cup
Handlebar: OC Gravel GR30-R, Rise 15, Reach 70, Drop 125
Stem: OC Road Performance RP21, -6º
Shifters: Shimano ST-RX600
Brakes: Shimano RX400 Hydraulic disc
Cassette: Shimano 105 R7000 11-34t 11-Speed
Rear derailleur: Shimano RD-RX810
Front derailleur: Shimano GRX RX810
Chain: Shimano HG 601
Wheelset: Orbea OC1
Tyres: Vittoria Terreno Dry Gravel G2.0 TNT 700x38c
Seatpost: OC2 Carbon 27.2 Offset 20
Saddle: Fizik Aliante R5
Front axle: Orbea Thru Axle 12x100mm M12x2 P1 Solid
Rear HUB: Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded

* In rare cases, our manufacturers supply bicycles with modified but equivalent components.
