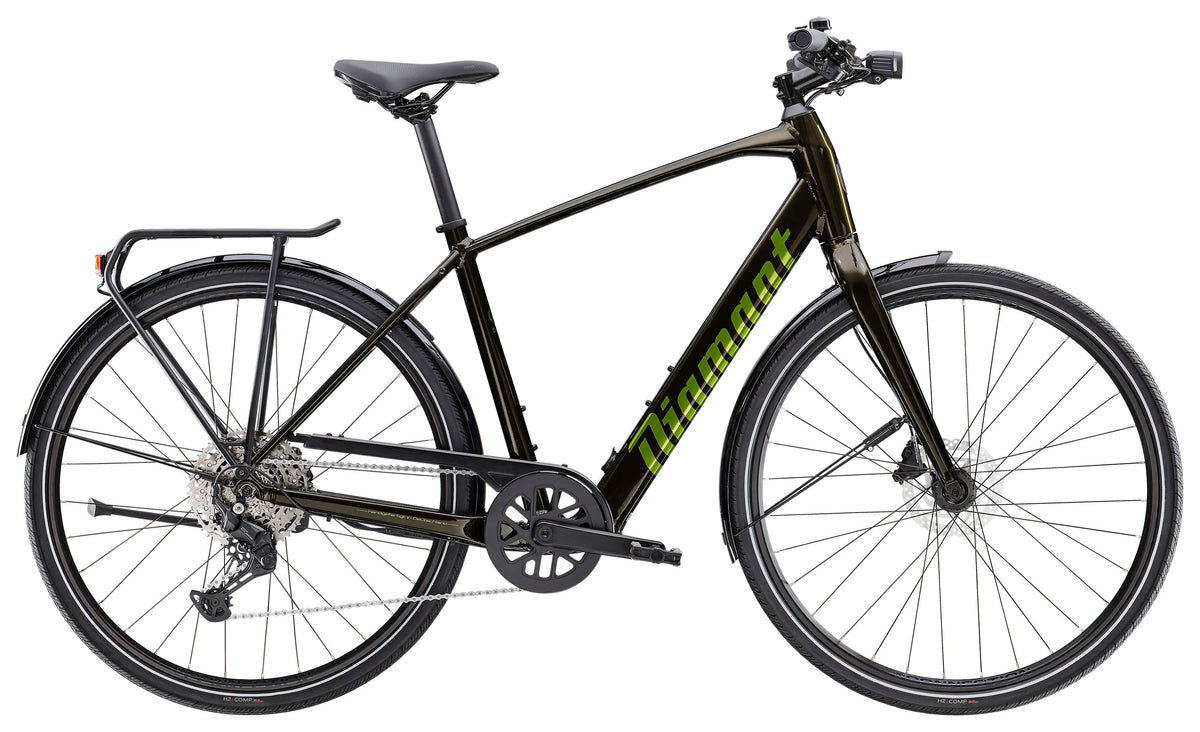

Diamant Rad 365 Deluxe (CUES) (Entry: high) - Oxide Green Metallic 252Wh

Fully equipped, but lightweight please. The 365 Deluxe comes with a luggage rack, lights, mudguards, and a stand as standard. Still, it weighs a slim 18kg. The lightweight hub motor and small battery make it possible - more than enough for your everyday life. With a range extender, the 365 Deluxe is even suitable for touring on asphalt and light gravel.

Frame:
Lightweight aluminium frame with internally routed cables and bottle cage mounts

Wheels:
Front Hub: Formula DC-20, aluminium, 6-bolt disc mount, 5 x 100 mm quick-release axle
Front Quick Release: 132 x 5 mm quick-release axle
Rear Hub: Hyena hub motor, 40 Nm, 250 W
Rim: Bontrager Connection, hollow chamber rim, 32 holes, 20 mm internal width, Presta valve
Spokes: 14 g, stainless steel, Black
Tires: Bontrager H2 Comp, reflective strip, wire bead, 30 TPI, 700 x 40 mm

E-System:
Battery: 250 Wh, integrated into the down tube
Charger: 2 A, 42 V output power, 100 V – 240 V AC input power
Computer: LED display

Drivetrain:
Shifter: Shimano CUES U6000 with optical gear display, 10-speed
Rear Derailleur: Shimano CUES U6000 GS
Crank:
Size: M
ProWheel Pro, aluminium, narrow-wide steel chainring (42 T), 170 mm crank arm length
Size: L, XL
ProWheel Pro, aluminium, narrow-wide steel chainring (42 T), 175 mm crank arm length
Bottom Bracket: Torque sensor, threaded, 122.5 mm axle length
Cassette: Shimano CUES LG400, LINKGLIDE, 11-48 teeth, 10-speed
Chain: Shimano LG500
Pedal: non-slip pedals with reflectors

Components:
Saddle: Selle Royal Vivo Moderate Ergo
Seatpost:
Size: M
Bontrager aluminium, 31.6 mm, 12 mm offset, 330 mm length
Size: L, XL
Bontrager aluminium, 31.6 mm, 12 mm offset, 400 mm length
Handlebar: aluminium low riser, 31.8 mm, 25 mm rise, 11-degree bend, 690 mm width
Grips: Herrmans Clik, ergonomic, with clamp
Stem:
Size: M
Bontrager Comp, 31.8 mm, Blendr compatible, 7 degrees, 80 mm length
Size: L
Bontrager Comp, 31.8 mm, Blendr compatible, 7 degrees, 90 mm length
Size: XL
Bontrager Comp, 31.8 mm, Blendr compatible, 7 degrees, 100 mm length
Brake: Hydraulic disc brake from Shimano, MT200 brake lever, UR300 brake caliper
Brake Disc:
Shimano RT26, 6-bolt disc mount, 160 mm
Shimano RT26, 6-bolt, 160 mm

Accessories:
Light:
Spanninga SOLO for e-bikes
Headlight Herrmans H-Black MR9-E, 60 Lux, LED
Kickstand: Pletscher Comp 18
Luggage Rack: MIK-compatible rear luggage rack made of aluminium, max. load 25 kg
Fender:
SKS plastic, rear
SKS plastic, front

Weight: L - 18.50 kg / 40.79 lbs

Max. Weight: This bike has a maximum weight limit (bike, rider, and load) of 136 kg.

* In rare cases, our manufacturers supply bikes with modified but equivalent components.
