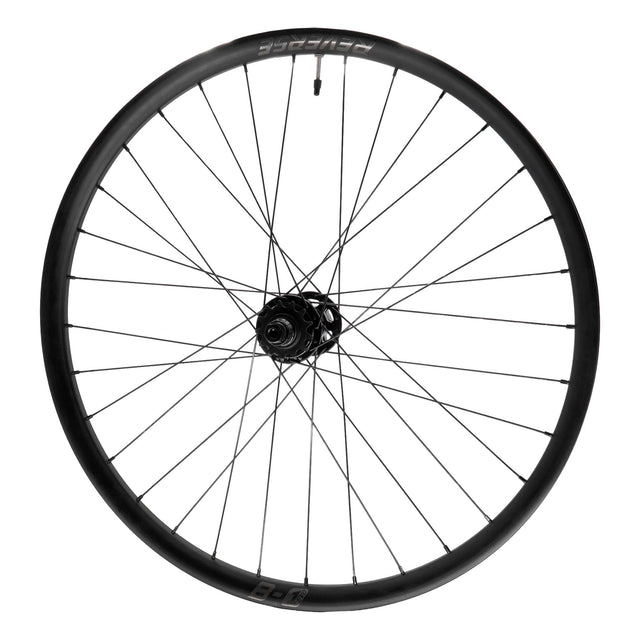

Reverse Black One Evo 26" Rear wheel, 10 x 135, Single Speed - Black

BLACK ONE EVO REAR WHEEL

The Black ONE EVO wheelsets were developed to be the ultimate gravity wheelsets for every use - from downhill to Enduro races and up to E-MTB. The result is a perfect balance of exceptional stability, uncompromising reliability and a noticeably lower weight.

Based on our proven Black ONE platform, the rim was completely redesigned and tested under the toughest race conditions. Targeted reinforcements in the key areas ensure maximum durability, while the optimised rim profile delivers a precise, agile ride feel. This is how the Black ONE EVO delivers uncompromising downhill performance - without unnecessary weight.

Combined with our proven Base hubs, butted spokes and Securelock spoke nipples, this wheelset leaves nothing to be desired in terms of performance.

Whether at the Enduro World Series, Red Bull Hardline or the FEST Series - the Black ONE EVO has proven its performance on the most demanding tracks in the world. Wheelsets that deliver top performance without unnecessarily driving up the price.

Technical highlights:

• Internal width: 30 mm
• Proven worldwide in Enduro-, downhill and freeride race use
• Optimised rim profile for lower weight with high stiffness
• Reinforced rim bead for maximum resistance and longevity
• Base hubs with proven reliability
• Securelock spoke nipples and butted spokes
• Tubeless Ready
• Weight: from 1.1 kg

Rim:

• Tubeless Ready
• Rim joint: Spliced and sealed (for optimal tubeless sealing)
• Size: 26"
• Number of holes: 32 (non-drilled)
• ERD: 534mm
• Outer width: 35 mm
• Inner width: 30 mm
• Height: 21.7 mm
• Weight: 550g (+/- 5 % weight tolerance)
• Valve hole: Presta / SV

Hub:

• 135/10 mm Singlespeed 13T
• Number of holes: 32
• 4 sealed bearings (4 x 6902 2RS)
• 6 ratchet pawls
• Cassette sprocket is permanently mounted to the freewheel
• 25 engagement points
• Compatible: 1 to 10-speed chains
• 13 T sprocket (9T / 10T / 11T and 12T freewheel with sprocket are available separately)
• Weight: 358 g (+/- 5 % weight tolerance)
• Material: aluminium
• Maximum screw torque: 40Nm

Spokes:

• Sapim Race (Black)

Nipples:

• Sapim Secure Lock

Weight:

• Rear wheel: 1.134 kg

Material:

• Rim and hub: aluminium
• Spokes: stainless steel
• Nipples: brass
