Feedback Sports Repair stand Sprint

The Sprint is built around its own clamping and fixing concept, making it the ideal solution for the growing number of aero frames, seatposts with special profiles or other models that can’t be fixed properly, or only poorly, with a conventional clamp.

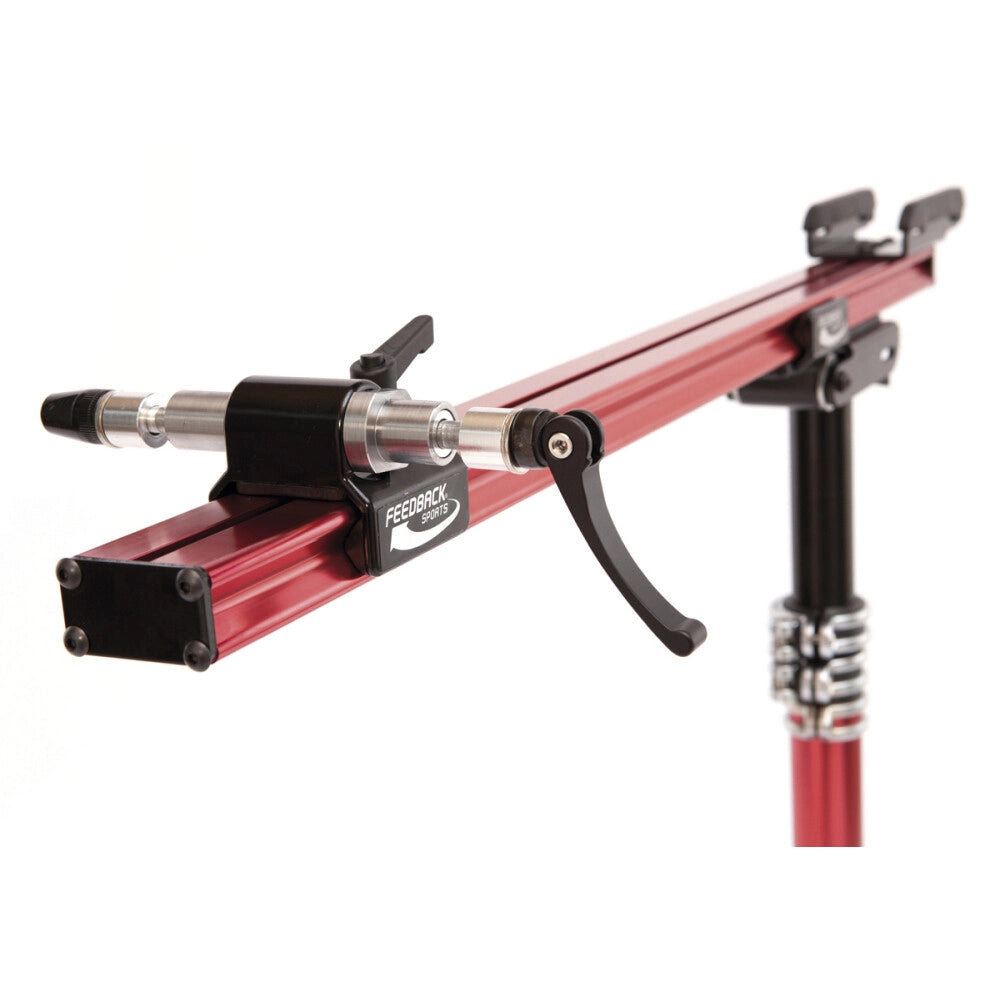

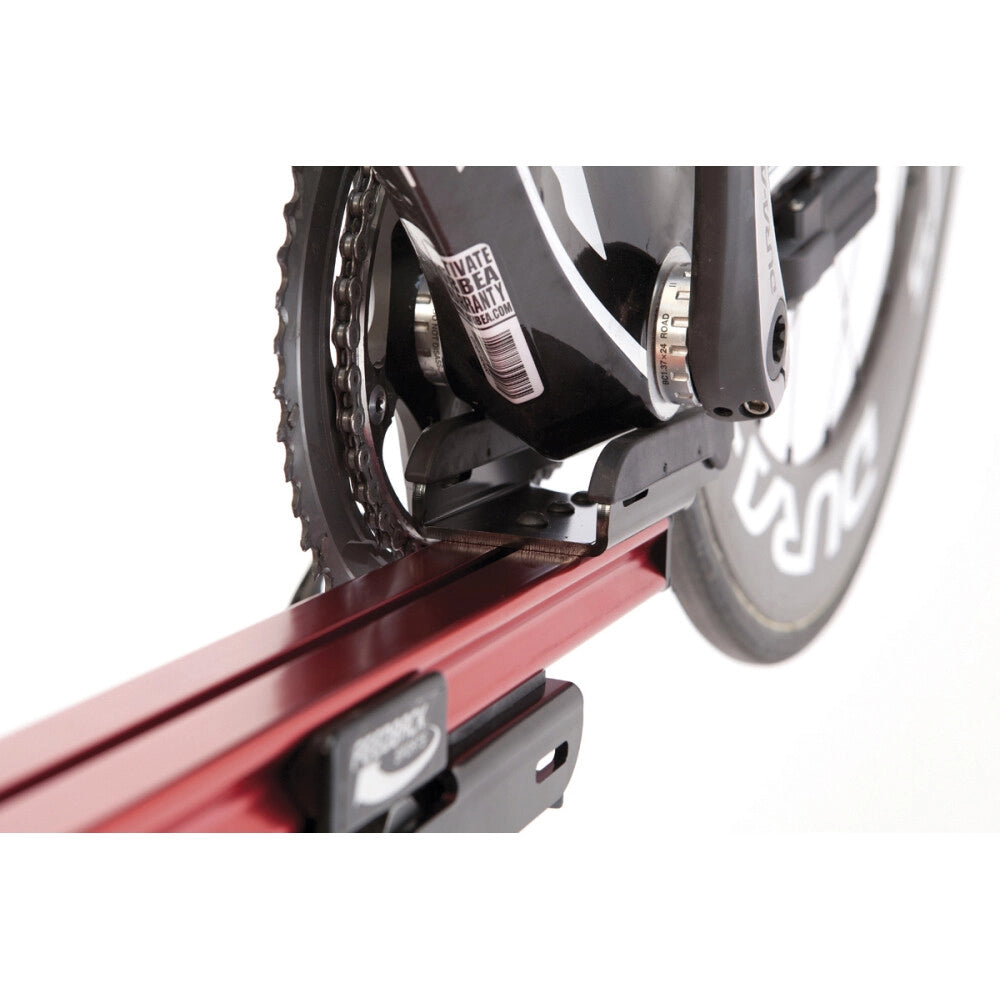

With the Sprint, the wheel is placed on a horizontal rail and, as an option, fixed with a tension mechanism at the fork or at the rear dropouts. An adapter ensures that quick-release or thru-axle mounts can be clamped in all conceivable dimensions. The frame is also additionally supported by placing the bottom bracket shell on a special plate.

This means the wheel is in the safe mounting position in no time. The system can be adjusted over an extremely large range in working height from 76 to 121 cm, and the balance is always kept optimally thanks to the horizontal shifting of the fixing points. In addition, the system can be rotated 360°, so literally every operation can be carried out in the optimal position.

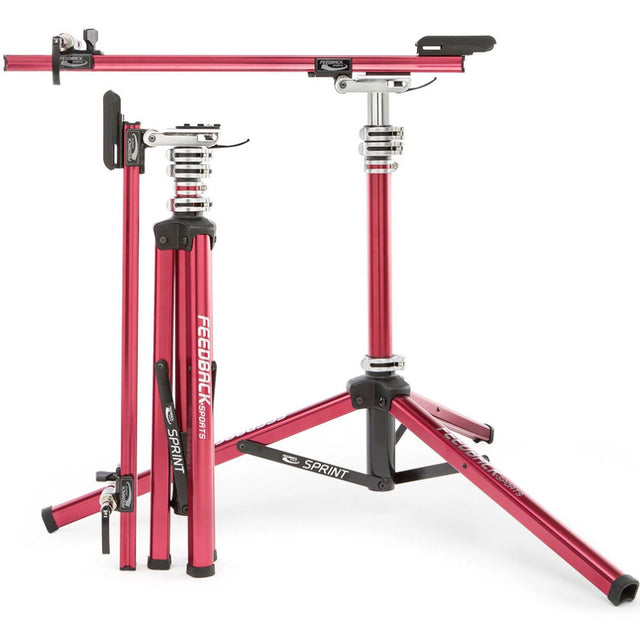

Even so, thanks to its three widely splayed tripod legs, the Sprint stands not only securely and stably on level workshop floors, but also in the terrain.

In fact, the Sprint is practically made for outdoor use. Thanks to its manufacture from a very lightweight aluminium alloy, it has a transport-friendly total weight of 5.7 kg. The protective anodising provides extreme weather resistance.

When folded, the Sprint also stands out for its small packed size. It can be shouldered at 38 kg and therefore doesn’t buckle even with heavy mountain bikes or even e-bikes.

From September 2019, the optional thru-axle adapters—12 x 100 mm, Boost with 15 x 110 mm and 12 x 148 mm—were already included in the scope of delivery.
The 20 x 110 mm version is also available as an option.

• Adjustable working height: 760-1,210 mm
• Rotatable 360° with flexible fork and bottom bracket position
• Very lightweight aluminium alloy with protective anodising
• Very stable stance thanks to the 3 tripod legs, even in the terrain
• Small size when folded
• Max. load capacity: 38.6 kg
• Material: anodised aluminium
• Dimensions folded: 1,270 x 190 x 760 mm
• Weight: 5.7 kg
• Dimensions of base foot: 1,160 mm
• Clamping height: 760-1,210 mm
• Package/contents: 1 repair stand, adapter for QR axle mount with 9 x 100/130/135 mm, adapter for thru axles 12 x 142 mm and 15 x 100 mm, 12 x 100 mm, 12 x 148 mm (Boost), 15 x 110 mm (Boost)
